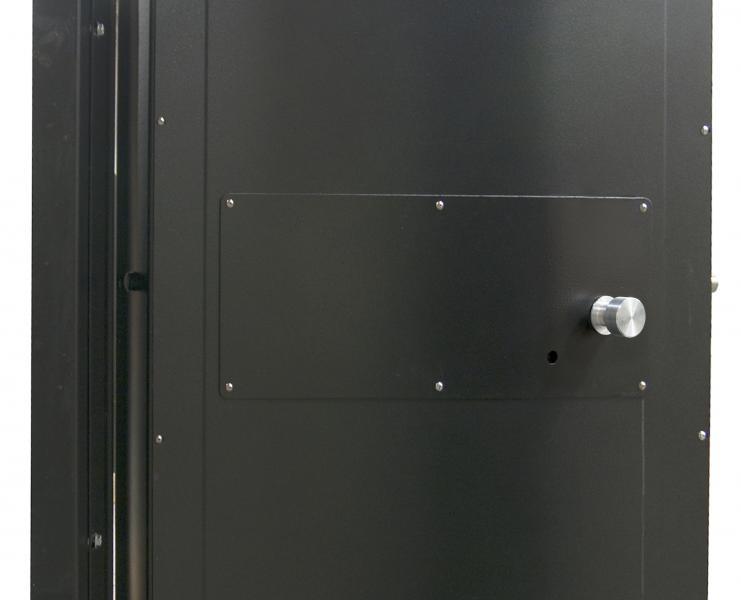

Access 7840 Insulated Fire Rated Vault Door (2, 4, or 6 Hour Fire Ratings)

Fire Rating:

The Access Vault Doors have 2, 4, or 6 hours. They are designed to maintain an internal temperature within the vault chamber of less than 350 degrees F; in a fire not to exceed 2,000 degrees F as defined in the Standard Time Temperature Fire Test, as defined in the National Fire Protection Association Standard NFPA 232 "Protection of Records." The vault door can also withstand the hose stream test after fire exposure.

Features:

• Door and Frame Construction: Entire door and frame made of solid 11 gauge steel (A1011 CS Type B, A569 CQ) with reinforcements in key locations and filled with GARDEX UL Light Weight Fire Mixture. This makes for a door superior to most fire doors on the market.
• Manufacturer's standard factory-applied water-based paint applied to vault door, frame, and wall flanges.
• Assembly: Manufacturer tested and certified fire resistance rated, in accordance with NFPA 232 for File-Room Doors. Doors shall carry a Class B Mercantile Burglary Insurance Rating.
• Fire Rating: 2, 4, or 6-hour rated. Select your fire rating at checkout.
• Door Opening: Normally 5" thick with a clear opening of 78" high by 36" wide. Coordinate installation details with wall thickness indicated on drawings.
• The door is locked with 10 1" stainless steel bolts, located five on each side of the door. All exposed bolt work shall be nickel-plated and permanently lubricated.
• Detent: Shall be provided to hold bolts back when open and to lock when closed.
• Locks: Bolts are locked by a three-wheel group 2 combination lock equipped with relocking device if a tool attack damages the lock. A second relocking device will automatically deadlock door bolts in case of a tool or torch attack.
• Escape Device: Emergency handle for the immediate door opening inside the locked vault.
• Hinges: Heavy-duty solid hinges with oil-rubbed bronze bushings for a lifetime of continuous use.
• Finish: Natural textured baked-on enamel in color selected by the Architect from the manufacturer's full range of available colors.
• Hardware: Chrome/nickel plating, satin finish.
• Wall Thickness: 8" Wall Thickness Standard. Adaptable to walls of 8" to 18".
• Flat sill for easy access.
• No grout installation.
• Frame made of steel angle 4" x 4" x 1/4".
• Door Swing: Left (hinges on the left-hand side) or Right (hinges on the right-hand side)

Specifications:

• Clear Opening: 78" H x 40" W
• Weight: 2 Hours - 975 Pounds
• 4 Hours - 1,190 Pounds
• 6 Hours - 1,505 Pounds
